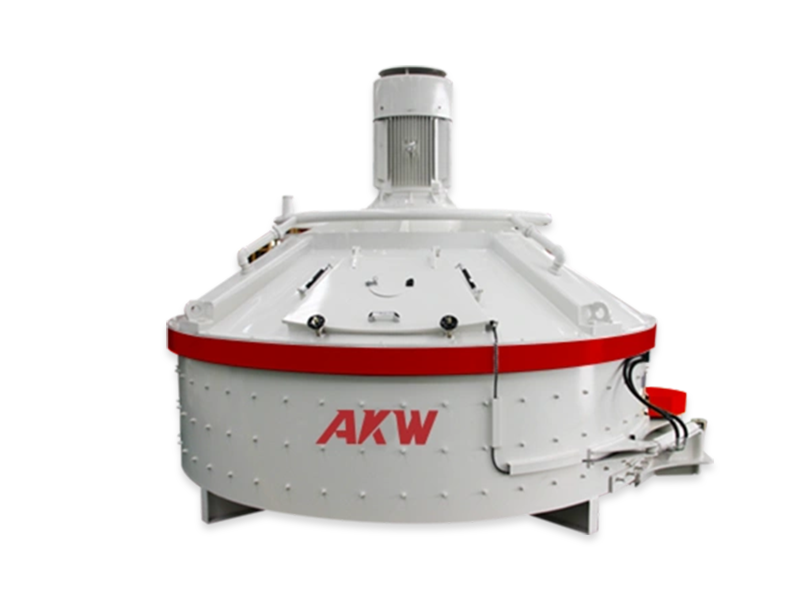

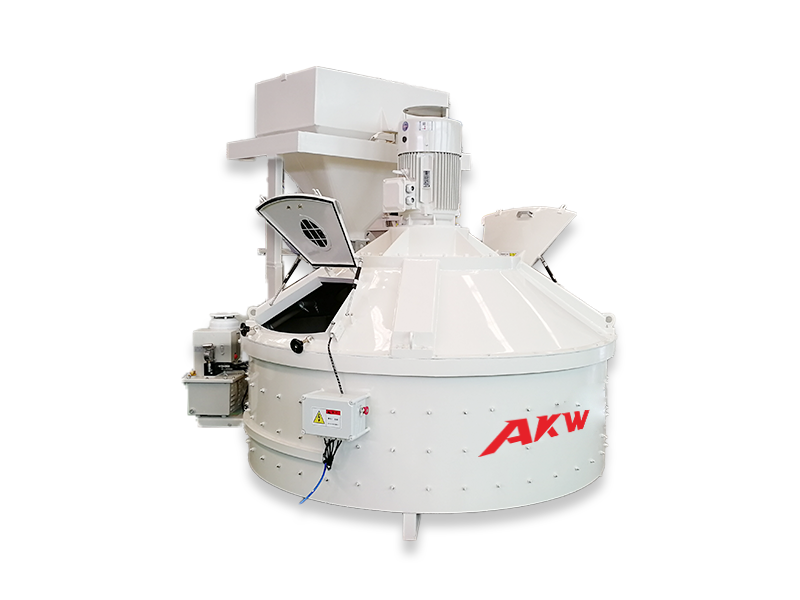

AMP vertical planetary mixer is suitable for precast concrete, fiber reinforced concrete, dry hard concrete, plastic concrete, UHPC ultra-high performance concrete, refractory materials, glass, casting, chemical industry and other industries. The whole machine has a simple structure, low maintenance rate, fully automatic control system, the material can achieve high homogeneity in a short time, high mixing efficiency, uniform mixing, and no dead angle mixing.
AMP Planetary mixer mixing principle
|
The mixing blades follow the superimposed motion principle of revolution and rotation of the mixing arm. After the materials are put into the mixer, the mixing motion trajectory will be in the process of 5 seconds to 60 seconds. Every 5 seconds when the mixing planet runs, the motion trajectory of the mixing blades can cover the bottom plate of the mixing tank once, without any dead angle.
Smooth transmission and high mixing efficiency: It adopts planetary reducer with high strength and high reliability, low noise, high torque and maintenance-free.
360° mixing without dead angle and high homogeneity: ensure the best homogenization of mixed materials.
Convenient unloading: flexible layout, 1-3 unloading doors can be selected, suitable for different production lines.

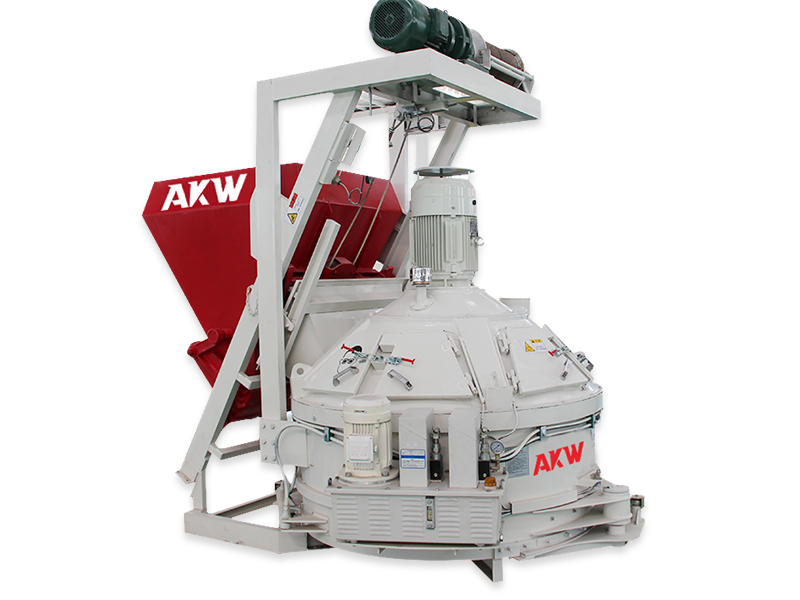

Hopper lifting anti-stuck feeding device to prevent dust from overflowing during mixing.
Safety door device: Each inspection door and observation door has an interlocking device and a safety switch
Mixing device: Mixing arm, mixing blade, wear-resistant lining, high wear resistance and high interchangeability.
Visual control system: equipped with an independent electric control cabinet, which can be linked to the PLC control system to achieve full automatic control. The process can be preset and adjusted during the production process.
 |

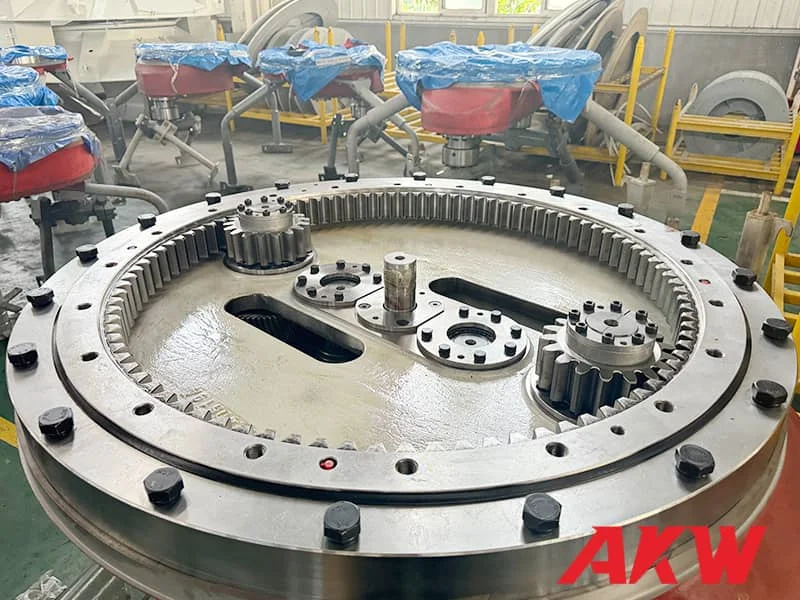

AKW Planetary Mixer Systerm Driving system consists of motor and hardened surface gear ,Flexible coupling and hydraulic coupling(option)connects motor and gearbox. The improved model has lower noise,longer torque and more durable,Even in strict production conditions, the gearbox can distribute power effectively and evenly to each mix end device ,ensuring normal operation, high stability and low maintenance. |
 |

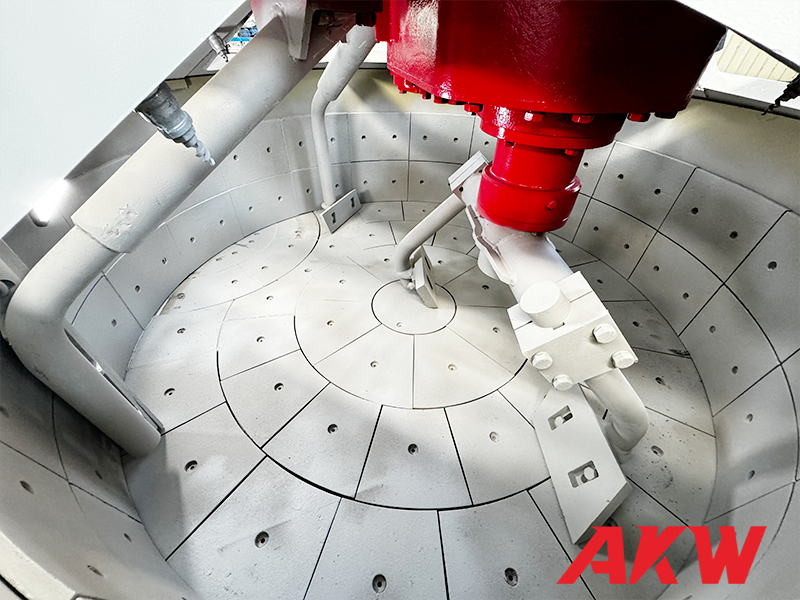

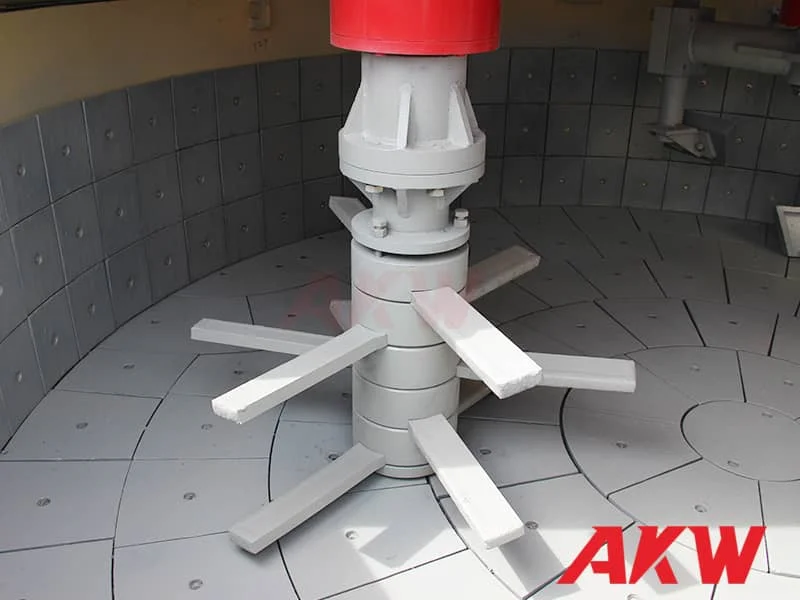

AKW Planetary Mixer Mixing device Compulsory mixing is realized by composite moves of extruding and overturning driven by rotating planets and blades. Mixing blades are designed in parallelogram structure, which can be turned 180°for reuse to increase sewice life. Specialized discharge scraper has been designed according to discharge speed in order to increase productivity. |
 |

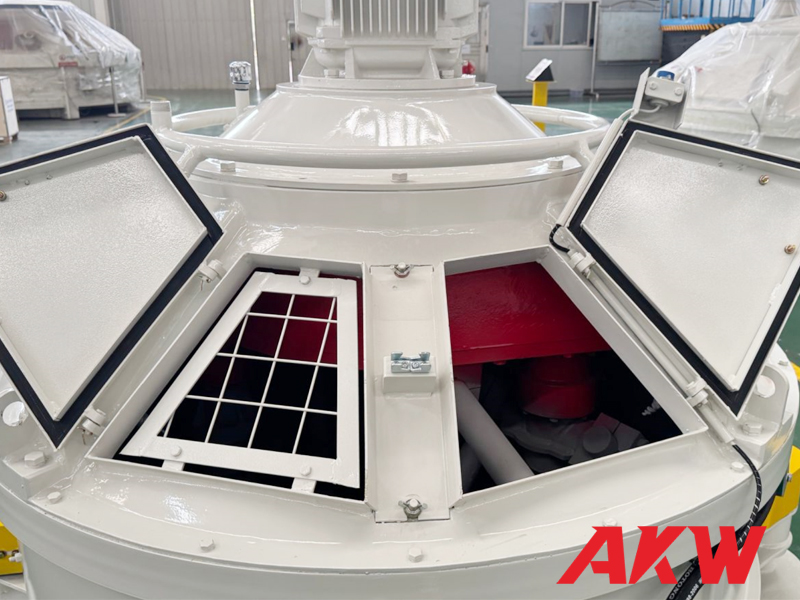

AKW Planetary Mixer Observing port There is an observing port on the maintaining door. You can observe the mixing situation without cutting off power. |
 |

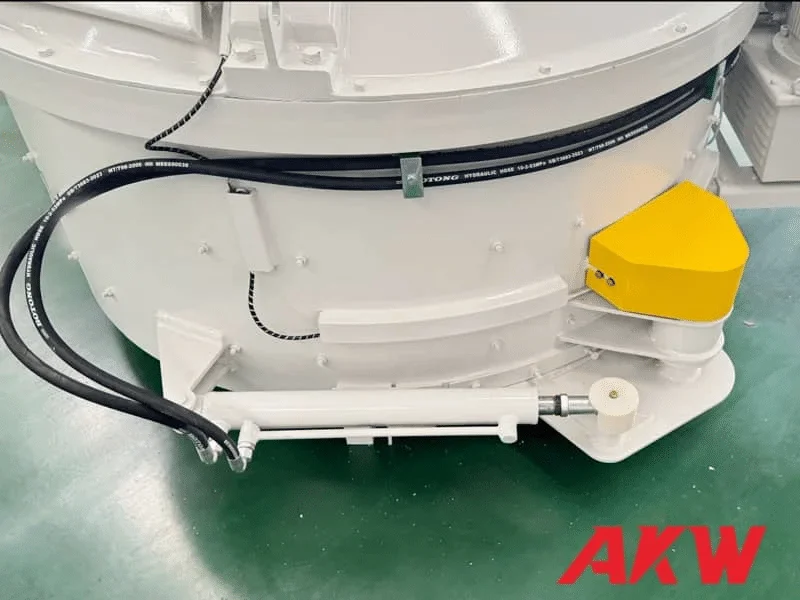

AKW Planetary Mixer Discharging device According to the different demands of customers, the discharging door can be opened by hydraulic, pneumatic or by hands. The number of the discharging door is three at most. And there is special sealing device on the discharging door to ensure the sealing reliable． |
|
Model |
Output capacity(L) |
Output weight(Kg) |
Mixing power(Kw) |
Discharging power(Kw) |
Planet/mixing arm |
Paddle(nr) |
Discharging paddle(nr) |
Lifting power(Kw) |
|---|---|---|---|---|---|---|---|---|
| AMP50 | 50 | 120 | 3 | - | 1/2 |
1 |
1 |
- |
|
AMP100 |
100 |
240 | 5.5 | - | 1/2 |
1 |
1 |
2.2 |
|
AMP150 |
150 | 360 | 7.5 | - | 1/2 |
1 |
1 |
2.2 |
|
AMP250 |
250 |
600 |
11 |
- |
1/2 |
1 |
1 |
3 |
|
AMP330 |
330 |
800 |
15 |
- |
1/2 |
1 |
1 |
4 |
|
AMP500 |
500 |
1200 |
18.5 |
- |
1/2 |
1 |
1 |
4 |
|
AMP750 |
750 |
1800 |
30 |
- |
1/3 |
1 |
1 |
7.5 |
|
AMP1000 |
1000 |
2400 |
37 |
3 |
2/4 |
1 |
1 |
11 |
|
AMP1250 |
1250 |
3000 |
45 |
3 |
2/4 |
1 |
1 |
15 |
|
AMP1500 |
1500 |
3600 |
55 |
3 |
2/4 |
1 |
1 |
15 |
|
AMP2000 |
2000 |
4800 |
75 |
4 |
3/6 |
1 |
2 |
22 |
|
AMP3000 |
3000 |
7200 |
110 |
4 |
3/9 |
1 |
2 |
37 |
|
AMP4000 |
4000 |
9600 |
160 |
4 |
3/9 |
1 |
2 |
- |
|
AMP5000 |
5000 |
12000 |
250 |
4 |
3/9 |
1 |
2 |
- |
